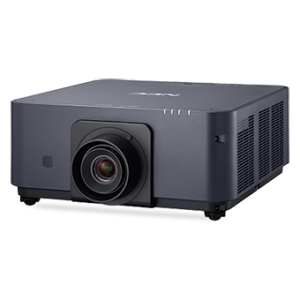

Think about projection technology in a whole new light! The NEC PX602UL is a powerful installation laser projector with a laser/phosphor light source that makes it perfect for all-new applications. With more consistent brightness, improved color fidelity, and tilt-free or portrait modes these projectors will deliver in new verticals such as retail, simulation, and theme park installations. Furthermore, the laser module delivers 20,000 hours of virtually maintenance-free operations, reducing your total cost of ownership!
Join NEC on a journey through the state of technology in education and hear from real schools about their technology issues and solutions. |
|
|
|
|
|
|
Display Technology |
DLP (0.67″ DMD) |
|
Light Output(Lumens) |
6000 normal |
|
Resolution |
|
Native |
WUXGA 1920 x 1200 |
|
Maximum |
4K 4096 x 2160 |
|
|
|
|
Contrast Ratio (up to) |
10,000:1 with auto iris |
|
Lamp Type |
Laser/Phosphor |
|
Lamp Life (up to) |
20,000 hours |
|
Screen Size (diagonal) |
50 to 300 in. / 1.27 to 7.62m |
|
Projection Distance |
2.58 to 114.9 ft. / 0.79 to 35.0m |
|
Projector Angle |
3.2 to 18.0° tele / 6.0 to 23.0° wide |
|
Lens |
|
Focus |
Power |
|
Shift |
Mechanical +/-0.5 vertical, +/-0.15 horizontal |
|
|
|
|
Keystone Correction |
+/- 40° horizontal, +/- 40° vertical |
|
|
|
|
|
|
|
|
Synchronization Range |
|
Horizontal (Analog/Digital) |
Analog: 15-100kHz, Digital: 15-153kHz |
|
Vertical (Analog/Digital) |
Analog: 48-120Hz, Digital: 24-120Hz |
|
|
|
|
Supported Video Standards |
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
SD/HD Video Signal Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
|
PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, SXGA+, WXGA, UXGA, FHD, WUXGA, 2K, QXGA, WQXGA, 4k |
|
Macintosh Compatibility |
Yes |
|
Input/Output Terminals |
|
RGB1(analog) |
VGA 15-pin D-sub |
|
RGB2(analog) |
5-BNC |
|
RGB3(digital) |
HDMI w/HDCP |
|
RGB4(digital) |
DisplayPort w/HDCP |
|
RGB5(digital) |
HDBaseT |
|
Monitor out |
HDMI |
|
|
|
|
External Control |
RS-232, IR, HDBaseT, Wired LAN, DDC/CI, USB |
|
Sync Compatiblity |
Separate Sync / Composite Sync / Sync on G |
|
Networking |
HDBaseT, RJ-45 |
|
|
|
|
|
|
