Jual | Harga Projector Panasonic PT-EX16K 16000 Ansi lumens DLP XGA

Ditambahkan pada : March 21st, 2015
*Harga Hubungi Kami
Stock : Tersedia
Kode Produk :
Dilihat : 2,470 kali
Kategori : Panasonic
Bingung Cara Order / Pesan?
Customer Service Multi Projector Indo 087888506177 Projector line UP Menjual Projector Panasonic | Infocus | Nec | Screen | Dan Service Projector Harga Murah Resmi siap melayani dan membantu Anda.

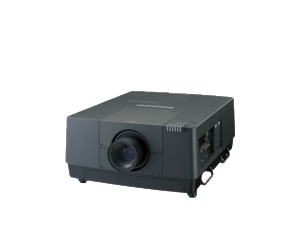

PT-EX16K_SpecMenjual Projector Panasonic PT-EX16K |PT-EX12K

Power supply 200-240 V AC, 50/60 Hz 100-240 V AC, 50/60 Hz
Power consumption 1,850 W (18 W with standby mode) 940 W (17 W with standby mode)
LCD panel Panel size 46 mm (1.8 inches) diagonal (4:3 aspect ratio)
Display method Transparent LCD panel (x 3, R/G/B)
Pixels 786,432 (1,024 x 768) x 3, total of 2,359,296 pixels
Pixel configuration Stripe
Pure color control device 1
Lens Optional
Lamp 380 W x 4, lamp replacement cycle
(lamp power: Normal/Eco1, Eco2):
2,000 hours/3,000 hours*1		 380 W x 2, lamp replacement cycle
(lamp power: Normal/Eco1, Eco2):
2,000 hours/3,000 hours*1
Screen size (diagonal) 1.02–15.24 m (40–600 inches) (2.54–15.24 m [100–600 inches] with the ET-ELS03),
4:3 aspect ratio
Brightness*2 16,000 lm (4-lamps, lamp power: Auto/Normal, Optional lens: ET-ELS03) 13,000 lm (2-lamps, lamp power: Auto/Normal, Optional lens: ET-ELS03)
Center-to-corner uniformity*2 90 %
Contrast*2 2,500:1
(full on/full off, 4-lamps, lamp power: Auto)		 4,000:1
(full on/full off, 2-lamps, lamp power: Auto)
Resolution 1,024 x 768 pixels
(Input signals that exceed this resolution will be converted to 1,024 x 768 pixels.)
Scanning
frequency		 HDMI/DVI-D Horizontal: 26–80 kHz, vertical: 23–85 Hz, dot clock: 162 MHz or lower
RGB (analog) fH: 15–120 kHz, fV: 48–120 Hz, dot clock: 230 MHz or lower
(Signals exceeding the dot clock rate of 165 MHz are downsampled.)
YPBPR (YCBCR) fH: 15.75 kHz, fV: 60 Hz [480i (525i)]
fH: 31.50 kHz, fV: 60 Hz [480p (525p)]
fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p]
fH: 33.75 kHz, fV: 60 Hz [1035/60i]
fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i]
fH: 28.13 kHz, fV: 50 Hz [1080/25sF]
fH: 27.00 kHz, fV: 48 Hz [1080/24sF]
fH: 33.75 kHz, fV: 60 Hz [1080/30sF]
fH: 56.25 kHz, fV: 50 Hz [1080/50p]		 fH: 15.63 kHz, fV: 50 Hz [576i (625i)]
fH: 31.25 kHz, fV: 50 Hz [576p (625p)]
fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p]
fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i]
fH: 28.13 kHz, fV: 25 Hz [1080/25p]
fH: 27.00 kHz, fV: 24 Hz [1080/24p]
fH: 33.75 kHz, fV: 30 Hz [1080/30p]
fH: 67.50 kHz, fV: 60 Hz [1080/60p]
Video/S-Video fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60],
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis shift With the ET-ELW06: vertical ±39% from center of screen (powered)*3
With the ET-ELW02/ELW04/ELS03/ELM01/ELT02/ELT03: vertical ±39%, horizontal ±10% from center of screen (powered)
With the ET-ELS02: vertical ±50%, horizontal ±10% from center of screen (powered)
With the ET-ELW03: the optical lens shift function cannot be used.
Keystone correction range Vertical: Maximum ±40°, Horizontal: Maximum ±40°
(with XGA signal input, for vertical/horizontal correction only, Optional lens: ET-ELS03)
Installation Ceiling/floor, front/rear
Terminals INPUT1 DVI-D IN DVI-D 24-pin x 1
(DVI 1.0 compliant, compatible with HDCP, compatible with single link only), 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1035/60i, 1080/24p, 1080/24sF, 1080/25p, 1080/25sF, 1080/30p, 1080/30sF, 1080/60p, 1080/50p, VGA (640 x 480)–WUXGA (1,920 x 1,200)*4,
compatible with non-interlaced signals only, dot clock: 25–162 MHz
HDMI IN HDMI 19-pin x 1
(compatible with HDCP, compatible with Deep Color), 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1035/60i, 1080/24p, 1080/24sF, 1080/25p, 1080/25sF, 1080/30p, 1080/30sF, 1080/60p, 1080/50p, VGA (640 x 480)–WUXGA (1,920 x 1,200)*4,
compatible with non-interlaced signals only, dot clock: 25–162 MHz
ANALOG IN D-sub HD 15-pin (female) x 1 (RGB x 1)
INPUT2 RGB 5BNC IN/
VIDEO IN		 BNC x 5 (RGB/YPBPR/YCBCR x 1), shared with VIDEO IN (BNC x 1) (composite video)
S-VIDEO IN Mini DIN 4-pin x 1 (S-Video)
INPUT3/INPUT4
Optional interface board slot, When the ET-MD16SD1 is installed,
SERIAL IN (SDI IN 1/2): BNC x 2 (SD-SDI signal/single link HD-SDI signal)
SD-SDI signal (YCBCR 4:2:2 10-BIT): 480i, 576i (SMPTE 259M-C compliant)

Single-link HD-SDI signal (YPBPR 4:2:2 10-BIT): 720/50p, 720/60p, 1035/60i, 1080/50i, 1080/60i, 1080/25p, 1080/25sF, 1080/24p, 1080/24sF, 1080/30p, 1080/30sF (SMPTE 292M compliant)
SERIAL OUT (SDI OUT): BNC x 1 (active through)
SERIAL IN D-sub 9-pin (male) x 1
for external control		 D-sub 9-pin (female) x 1
for external control
SERIAL OUT D-sub 9-pin (male) x 1 for link control
REMOTE IN M3 Jack x 1 (for wired remote control)
LAN RJ-45 x 1 (for network connection, 100Base-TX/10Base-T,
compliant with PJLink™ [class1])
USB USB type-B (USB connector) x 1*5
Cabinet materials Molded plastic
Dimensions (W x H x D) 650 x 349 x 815 mm
(25.6” x 13.7” x 32.1”)
(with legs at shortest position, optional lens not included)		 538.5 x 268 x 757 mm
(21.2” x 10.6” x 29.8”)
(with legs at shortest position, optional lens not included)
Weight Approximately 46.5 kg (102.5 lbs)
(optional lens not included)		 Approximately 28 kg (61.7 lbs)
(optional lens not included)
Noise level 51 dB (lamp power: Normal/Eco2),
48 dB (lamp power: Eco1)		 42 dB (lamp power: Normal/Eco2),
39 dB (lamp power: Eco1)
Operating temperature 5°C- 40°C [41°F-104°F] (less than 1,800 m [5,906 ft] above sea level),
5°C- 30°C [41°F-86°F] (between 1,800 m and 2,700 m [5,906 ft to 8,858 ft] above sea level)		 0°C- 40°C [32°F-104°F] (less than 1,400 m [4,593 ft] above sea level),
0°C- 30°C [32°F-86°F] (between 1,400 m and 2,700 m [4,593 ft to 8,858 ft] above sea level)
Operating humidity 20–80 % (no condensation)
Supplied accessories Power cord x 1 (x 2 for PT-EX16KE/EX12KE), power cord holder/power cord cover x 1set, wireless/wired remote control unit, batteries (AAA/R03/LR03 type x 2), VGA cable x 1,
software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software, Real Color Manager Pro.), lens attachment x 1set, lens lock lever fixing bracket x 1set, lightshielding plate x 3set, spacer x 1set, cable tie x 3
  • *1 The values given for the recommended lamp replacement cycles are maximum.
  • *2 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
  • *3 The ET-ELW06 is equipped with only vertical optical axis shift.
  • *4 Compliant with VESA CVT-RB.
  • *5 This port is for use by service personnel only. The USB interface may not operate with all USB compatible equipment.
